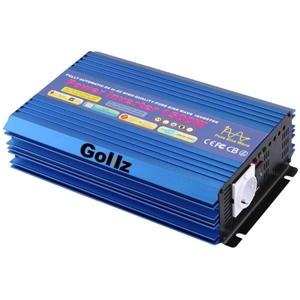

1500w pure sine wave inverter on sale, convert 12vdc to 110v/220v AC power supply, suitable for home and business use, like refrigerator, laptop etc. Buy it from manufacturer directly.
Free shipping
Delivery date: 6 - 12 Days
-
*
-
-
*
-
-
*
-
$359.00
$293.20
Low price 1500w power inverter with pure sine wave output, a good option for charging refrigerator, laptops and much more home appliances.
Basic Specification
| Input |
DC Voltage |
12V |
24V |
48V |
| DC Voltage Range |
10.5V~15V |
21V~30V |
42V~60V |
| Output |
AC Voltage |
100V, 110V, 120V, 220V, 230V, 240V (Option) |
| Frequency |
50 Hz / 60 Hz +/-0.3% (Option) |
| Rated Power |
1500W |
| Peak Power |
3000W |
| Waveform |
Pure sine wave (THD<3%) |
| Efficiency |
>90% |
| Fuse |
40A |
20A |
10A |
| Remote Control |
YES (Add-on) |
NO |
| USB Port |
DC 5V +/- 5%, 500 mA |
| Outlet Types |
Universal outlet (Or specify it in orders) |
| Protection |
Over Voltage |
All indicators OFF, alarm Bi~~~ |
| Under Voltage |
10.5V |
21V |
42V |
| Indicate alarm Bi~~~, then all indicators OFF, alarm BiBi~~~ |
| Overload & Short Circuit |
Red indicator ON, alarm BiBi~~~ |
| Overheat |
Yellow indicator ON |
| Environment |
Working Temperature |
-5-50°C |
| Storage Temperature |
-20-55°C |
| Working Humidity |
10%-90% |
| Storage Humidity |
5%-95% |
| Specs |
Dimension |
(320 + 33) * 216 * 88 mm |
| Package Size |
485 * 255 * 110 mm |
| Net Weight |
4.5 kg |
| Gross Weigh |
5.5 kg |
Tips: What is inductive load?
Generally, inductive loads are the electrical power products manufactured under the principle of electromagnetic induction, such as induction motors, refrigerator, compressors, relays, fluorescent lamps and more. These products require a higher starting current (about 3-7 times higher than the normal operating current) during startup. For example, a home refrigerator normal operating consumes approx 300 watt, the starting power is up to 1500 watt or even higher. In addition, due to the inductive load will produce electromotive force voltage during the moment of power on/off, such peak voltage is higher than the voltage of the pure sine wave power inverter can withstand, it is easy to cause the sine wave inverter instantaneous overload and affect the service life of the power inverter.
Existing reviews
I would like a 12v dc and 24v dc input and 110v ac output inverter pure sine wave at 1500 watts operation range in one unit. Can this be done?
By
Colin
on 27/04, 2018
Was this review helpful?
Yes /
No
(0/0)
No, it is only one input voltage, 12VDC or 24VDC.
By
GoHz.com
on 27/04, 2018
Was this review helpful?
Yes /
No
(0/0)
