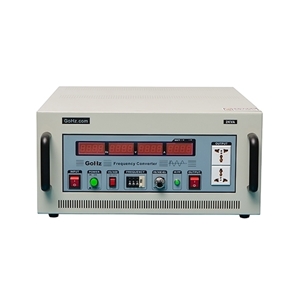

2kVA single phase frequency converter for converting 240V 50Hz (Australia) to 120V 60Hz (Canada) power with pure sine wave output, built-in step-down transformer, wholesale price by manufacturer direct sale.
Delivery date: 6 - 12 Days
$2,596.00
$2,272.58
2 kVA pure sine wave frequency converter, single phase 240V 50Hz input, single phase 120V 60Hz output, make your home appliances workable in different frequency & voltage among different countries power supply. To convert 120V 60Hz to 240V 50Hz in reverse, it needs one more step-up transformer, you can see this page and choose the input voltage 120V.
Specification
| Model |
HZ-50-1102 |
| Capacity |
2 kVA |
| Dimension |

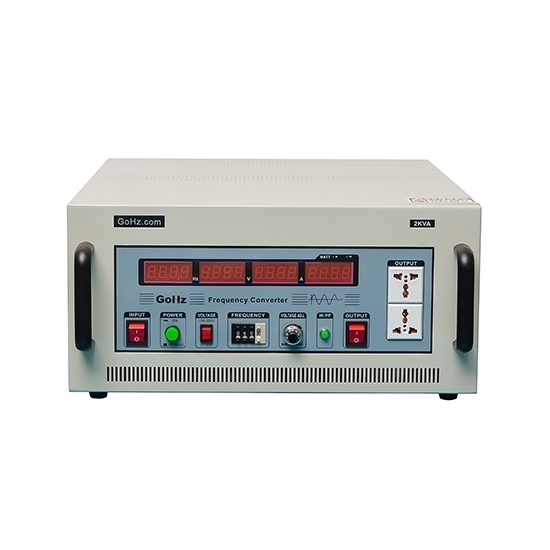

Benchtop Type |
660*510*250mm |

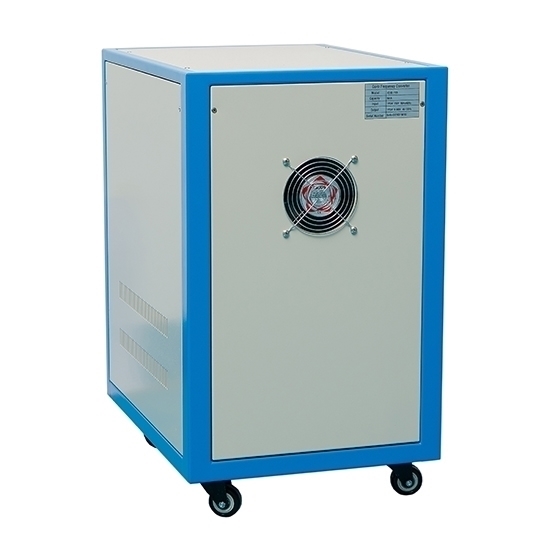

| Cabinet Type |
550*400*670mm |
| Weight |
Benchtop Type |
49 kg |
| Cabinet Type |
60 kg |
| Input |
Voltage |
1 Phase 2 Wire: 110V/120V, 220V/230V/240V ± 10% (option *) |
| Frequency |
50 Hz, 60 Hz or 400 Hz ± 5% |
| Output |
Voltage, current |
120V Setting (Low grade): 0-150V, 16.8A |
| 240V Setting 0-300V (High grade): 0-300V, 8.4A |
| Load stabilization Rate |
≤±1% |
| Frequency |
50 Hz, 60 Hz up to 400 Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option. |
| Frequency Stability |
≤±0.01% |
| Harmonic Distortion |
Pure Sine Wave ≤2% |
| Frequency meter |
4 digit, digital frequency meter, resolution 0.1Hz/Step |
| Voltmeter |
4 digit, digital voltage meter, resolution 0.1V |
| Ammeter |
4 digit, digital ammeter, resolution 0.1A |
| Watt meter |
4 digit, digital Watt meter, resolution 0.1W |
| Protection |
With overload, short circuit, over temperature |
| Instantaneous power failure protection and alarm device |
| Working Environment |
Temperature |
0 - 40 deg.℃ |
| Humidity |
0 - 90% (Non condensation) |
| Warranty |
18 months |
Tips: is 120V 60Hz power safer than 240V 50Hz power?
The frequency of 50Hz need the voltage of 220V-240V and frequency of 60Hz needs lower voltage 110V-120V. The country like US is using 60Hz 120V, Australia is using 50Hz 240V. So that all the appliances that use electricity require maintaining standards of 60Hz 120V or 50Hz 240V. The lower voltage 110V, 120V associated with a 60 Hz system is not necessarily better from a safety point of view. At 120V the smaller muscles of the human hand contract, leaving the owner in the current path. At higher voltages, the larger muscles of the arm and torso contract which tends to remove the person from the circuit. It is the current cycling at 50 / 60 Hz causing the heart to try to beat at that rate, if that muscle is subjected to the current flow, that is the most likely source of significant trauma. 60Hz 120V is equally harmful as 50Hz 240V, it's the voltage and current levels that determine the danger levels, not frequency.
For the appliances not workable on both 50Hz and 60Hz power, you can buy this converter to make the power system compatible with your appliances, easy converting 240V 50Hz to 120V 60Hz in a single step.
