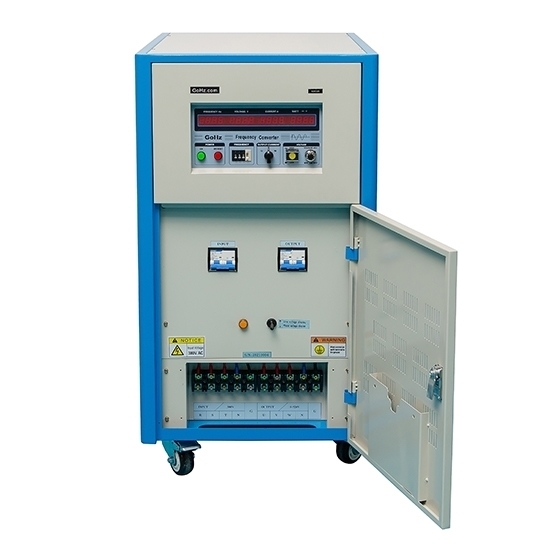

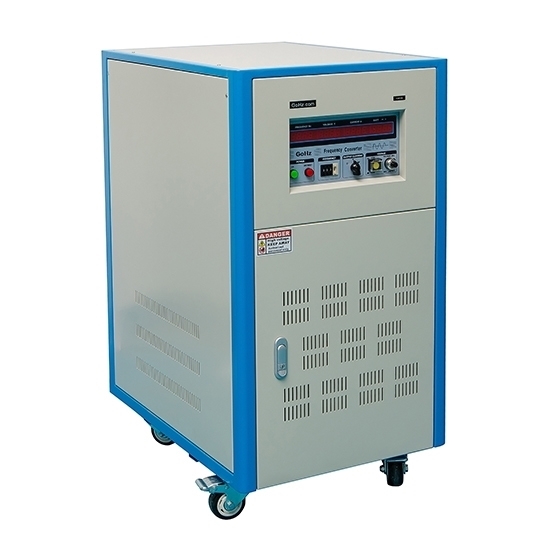

3 kVA Three Phase Static Frequency Converter

3 kVA static frequency converter, three phase 50/60 Hz 220V/380V input, three phase 0-520V pure sine wave output, changeable voltage & frequency (V/Hz) for international appliances testing.
Delivery date: 6 - 12 Days

3 kVA three phase pure sine wave static frequency converter, make your appliances comptible with international power systems, converting 50hz to 60hz easily, also can boost voltage from 220V to 380V, 480V etc.


Model HZ-50-3303
Capacity 3kVA
Dimension 680*500*970mm
Weight 120 kg
Input Voltage 3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
Frequency 50 Hz, 60 Hz or 400 Hz ± 5%
Output Voltage, current 110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 8.4A
220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 4.2A
Load stabilization Rate ≤±1%
Frequency 50Hz, 60Hz up to 400Hz adjustable
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability ≤±0.01%
Harmonic Distortion Pure Sine Wave ≤2%
Frequency meter 4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter 4 digit, digital voltage meter, resolution 0.1V
Ammeter 4 digit, digital ammeter, resolution 0.1A
Watt meter 4 digit, digital Watt meter, resolution 0.1W
Protection With overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working Environment Temperature 0 - 40 deg.℃
Humidity 0 - 90% (Non condensation)
Warranty 18 months

* The input voltage is factory selected.

Download PDF, DOC...
PDF: 50Hz/60Hz Frequency Converter Manual
