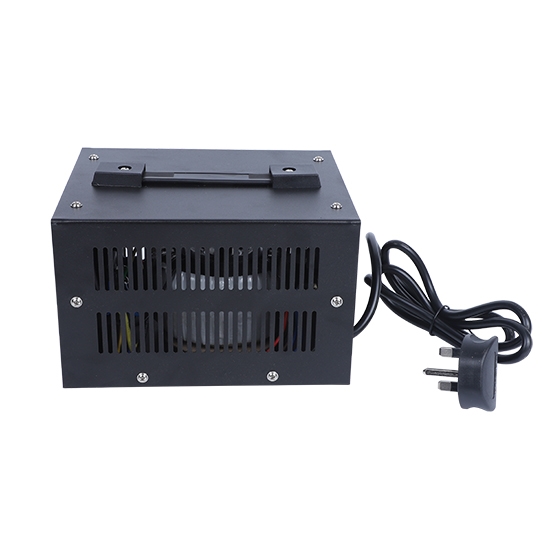

1000 Watt Voltage Converter, 110v/120v, 220v/230v/240v

1000w step down & step up voltage converter, input voltage is available for 110v, 120v, 220v, 230v, 240v, easy transform 110v to 220v, 240v to 120v for your home appliances.
Free shipping
Delivery date: 6 - 12 Days

1000 watt voltage converter, transformer.

Basics Model HZ-ST-1000
Capacity 1000 watt
Shipping weight 7 kg
Dimension 305 * 225 * 235 mm
I/O Feature Input voltage 1 phase 110v, 120v, 220v, 230v, 240v AC
Input frequency 50Hz / 60Hz
Output voltage 110v or 220v
Output frequency Same as input frequency
Environment Enclosure rating IP 20
Temperature –10℃~ +40℃;
Humidity 5%-95%, without condensation
Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Introduction of GoHz Voltage Converter
Get familiar with GoHz step-down & step-up voltage converter with following instructions to maximize the benefits for your appliances.
GoHz voltage converter panels

Connect Your Appliances to GoHz Voltage Converter
Check the power consumption of your appliances from the nameplate to choose a suitable step-down & step-up voltage converter.
If your appliances voltage rating is 110v, your mains voltage must be 220v.
If your appliances voltage rating is 220v, your mains voltage must be 110v.
Connect appliances to voltage converter
*Make sure all appliances are shutdown before switching on the converter.
*Make sure the appliances total power consumption do not exceed the maximum output power of the voltage converter, plug your appliances to the voltage converter, select the right input voltage according to your mains power supply.

Plug GoHz Voltage Converter to Power Source
Plug the power cord of the voltage converter to home power source outlet as shown in the diagram and switch "ON".
Plug voltage converter to power source

Switch On GoHz Voltage Converter
Press the power "ON/OFF" switch to "ON" position and LED is lighting.
Switch on your appliances one by one.
