  4. 30 kVA 3 Phase Solid State Frequency Converter

30 kVA 3 Phase Solid State Frequency Converter

30 kVA 3 Phase Solid State Frequency Converter
Affordable price 30 kVA 3 phase solid state frequency converter, change 60 Hertz to 50 Hertz, boost 220V to 400 /480V, output three phase or single phase, pure sine wave AC power source.
Delivery date: 6 - 12 Days
8 review(s) | Add your review
$13,790.00
$11,833.46

30 kVA 3 phase solid state frequency converter, changeable output frequency (0-400Hz) and voltage (0-520V AC), easy changing 60 Hz to 50 Hz power, pure sine wave power supply.

Specification

Model HZ-50-3330
Capacity 30 kVA
Dimension 900*800*1200 mm
Weight 330kg
Input Voltage 3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
Frequency 50 Hz, 60 Hz or 400 Hz ± 5%
Output Voltage, current 110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 83.2A
220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 41.6A
Load stabilization Rate ≤±1%
Frequency 50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option..
Frequency Stability ≤±0.01%
Harmonic Distortion Pure Sine Wave ≤2%
Frequency meter 4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter 4 digit, digital voltage meter, resolution 0.1V
Ammeter 4 digit, digital ammeter, resolution 0.1A
Watt meter 4 digit, digital Watt meter, resolution 0.1W
Protection With overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working Environment Temperature 0 - 40 deg.℃
Humidity 0 - 90% (Non condensation)
Warranty 18 months

* The input voltage is factory selected.

Download PDF, DOC...
PDF: 50Hz/60Hz Frequency Converter Manual
Write your own review for 30 kVA 3 Phase Solid State Frequency Converter
  • Only registered users can write reviews
Needs Improvement Best

Existing reviews

Excellent thermal performance
This 30 kVA solid state frequency converter is a truly practical choice! The conversion is very stable and the output remains smooth even under high loads. The well thought out design and excellent heat dissipation means that it will not overheat even after long periods of operation.
By Christopher on 12/11, 2024
Was this review helpful? Yes / No (0/0)
Easy to operate and powerful
I have used this 30 kVA 3 phase solid state frequency converter to stabilise the power supply to my equipment and it is easy to operate and powerful. I especially like its auto-tuning feature, which gives me more peace of mind when I'm busy.
By cora on 24/10, 2024
Was this review helpful? Yes / No (0/0)

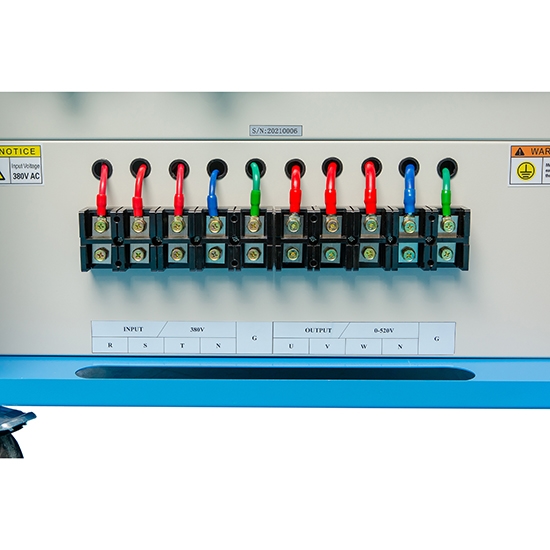

Are the "load" grounds connected together? Or do you separate them?
The input ground wire and the output ground wire are usually connected separately, but they can also be connected together.
The ground wire at the input should be properly connected to the power supply's grounding system, which is the building ground. Just connect the ground wire of the output to the load UPS.
By GoHz.com on 14/08, 2024
Was this review helpful? Yes / No (0/0)
Are the "load" grounds connected together? Or do you separate them?
For your 3-phase frequency converter, should we connected input side "supply" ground To output side "load" groud together? Or make them separate?
By Hope on 14/08, 2024
Was this review helpful? Yes / No (0/0)
Respond to inquiry
Based on your specs, recommended frequency converter model: HZ-50-3330, 30kVA power capacity, input: 3ph, Wye (L1,L2,L3 + N,G), 480V (+/- 10%), 50/60Hz and output: 3ph, Wye/Delta (L1,L2,L3 + N,G), adjustable (0-520V), adjustable (40-400Hz), 4.2A/8.4A.
By GoHz.com on 01/08, 2024
Was this review helpful? Yes / No (0/0)
Inquiry
We have 3-phase, 400V power run into the lab.
We need 230V +/- 10V, 3-phase, 400Hz, 9500 VA + margin
Can the output be controlled? Can we dynamically change the output
Load is Avionic electronics at 7300VA max; would like some margin so looking at 10kVA unit.... What converter model/capacity would you recommend us?
By Chad S on 01/08, 2024
Was this review helpful? Yes / No (0/0)
Awesome product!
It's got a really smooth operation, there are live curves, instructions are easy to understand and it's great for doing experiments to get data. The main thing is that it's reasonably priced, it's hard to find products this good at this price. I have to say I'm really impressed.
By Melina on 22/07, 2024
Was this review helpful? Yes / No (0/0)
Reliable
This converter is really reliable. I've been using this inverter for a while now and it's held up really well. It's got a high-quality motor control system that's pretty precise.
By Ranni on 02/07, 2024
Was this review helpful? Yes / No (0/0)
