Low cost 150 hp soft starter, 110 kW three phase 230v, 400v, 460v, 660v softstarter, control motor in soft start & soft stop, selling by manufacturer directly with wholesale price.
Free shipping
Delivery date: 6 - 12 Days
-
-
-
-
$1,399.00
$1,219.51

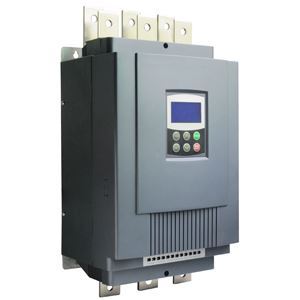

150 hp AC motor soft starter, 110 kW three phase 230v, 400v, 460v, 660v for selection.
| Model |
GS2-110 (230v), GS3-110 (400v), GS4-110 (460v), GS6-110 (660v). |
| Capacity |
150 hp (110 kw) |
| Current |
230 amps at 400/480v, 470 amps at 220v |
| Weight |
21 kgs |
| Dimension |
525*257*194 mm |
| Input |
Voltage |
3 phase 230v, 400v, 460v, 660v AC |
| Frequency |
50Hz/ 60Hz |
| Adaptive Motor |
Squirrel-cage three-phase asynchronous motor |
| Starting Times |
It is recommended not to exceed 20 times per hour. |
| Communication |
DB9 interface, male plug, ① is RS485+, ⑥ is RS485- |
| Control Mode |
(1) Operation panel control. (2) Operation panel + external control. (3) External control. (4) External control + COM control. (5) Operation panel + external + COM control. (6) Operation panel + COM control. (7) COM control. (8) No start or stop operation. |
| Start Mode |
(1) Current-limiting to start. (2) Voltage ramp to start. (3) Torque control + current-limiting to start. (4) Torque control + voltage ramp to start. (5) Current ramp to start. (6) Voltage current-limiting double closed-loop start. |
| Stop Mode |
(1) Soft stop. (2) Free stop. |
| Protective Function |
(1) Open loop protection for external instantaneous stop terminals. (2) Over-heat protection for soft starter. (3) Protection for too long starting time. (4) Input open phase protection. (5) Output open phase protection. (6) Unbalanced three-phase protection. (7) Starting over current protection. (8) Running overload protection. (9) Under voltage protection for power voltage. (10) Overvoltage protection for power voltage. (11) Protection for fault parameter setting of the soft starter. (12) Load short circuit protection. (13) Auto restart or incorrect wiring protection. (14) Incorrect wiring protection of external control stop terminals. |
| Ambient |
Place to be used |
Indoor location with good ventilation free from corrosive gas and conductive dust. |
| Altitude |
Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M. |
| Temperature |
-30 +55 oC |
| Humidity |
90%RH without dew condensation. |
| Vibration |
<0.5G |
| Structure |
Enclosure |
IP 20 |
| Cooling |
Natural wind cooling. |
