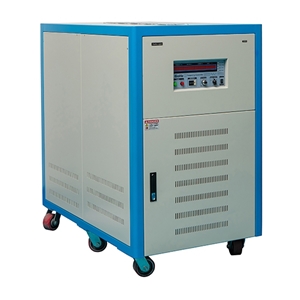

75 kVA Solid State Frequency Converter

Inexpensive 75 kVA solid state three phase frequency converter for sale, change 50Hz to 60Hz, 400Hz, pure sine wave single phase or three phase output, direct sale by manufacturer.
Delivery date: 6 - 12 Days
$22,930.00
$19,164.00

Low cost 75 kVA solid state frequency converter, easy changing 50Hz to 60Hz, 400Hz with pure sine wave single phase or three phase output, workable with 110V, 120V, 220V, 230V, 240V, 380V, 400V - 440V 50Hz/60Hz power systems.

Specification

Model HZ-50-3375
Capacity 75 kVA
Dimension 1200*750*1270 mm
Weight 575 kg

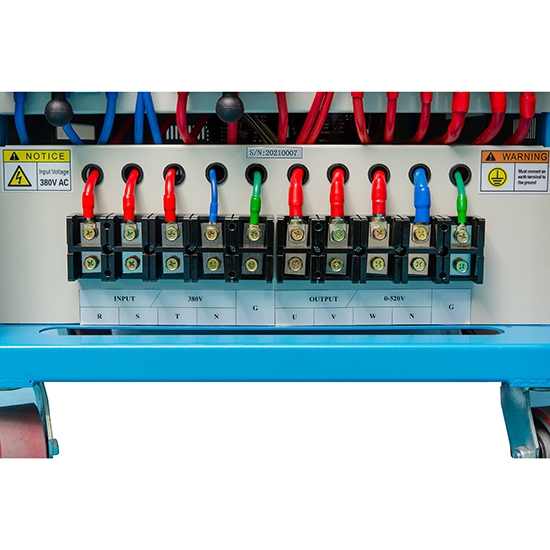

Input Voltage 3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
Frequency 50 Hz, 60 Hz or 400 Hz ± 5%

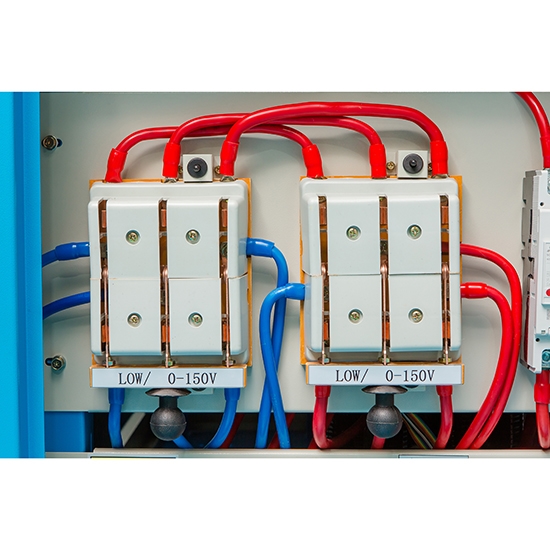

Output Voltage, current 110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 208.4A
220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 104.2A
Load stabilization Rate ≤±1%
Frequency 50Hz, 60Hz up to 400Hz adjustable
Note:
-When the output is 400Hz, the load capacity can only reach 50% of the rated capacity.
-When the output is ≤120Hz, the load capacity can reach 100% of the rated value.
-You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
Frequency Stability ≤±0.01%
Harmonic Distortion Pure Sine Wave ≤2%

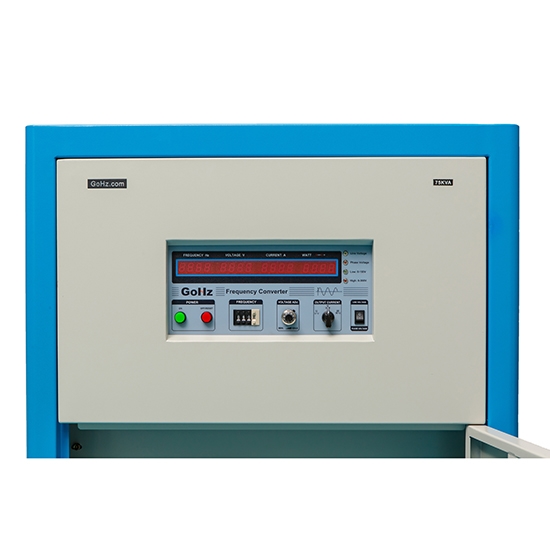

Frequency meter 4 digit, digital frequency meter, resolution 0.1Hz/Step
Voltmeter 4 digit, digital voltage meter, resolution 0.1V
Ammeter 4 digit, digital ammeter, resolution 0.1A
Watt meter 4 digit, digital Watt meter, resolution 0.1W
Protection With overload, short circuit, over temperature
Instantaneous power failure protection and alarm device
Working Environment Temperature 0 - 40 deg.℃
Humidity 0 - 90% (Non condensation)
Warranty 18 months

* The input voltage is factory selected.

Download PDF, DOC...
PDF: 50Hz/60Hz Frequency Converter Manual
Write your own review for 75 kVA Solid State Frequency Converter
  • Only registered users can write reviews
Needs Improvement Best

Existing reviews

The price is not expensive
I was going to buy other brands, have been added to the shopping cart to compare, suddenly saw this self-function was attracted, think this is quite convenient, and the price is not expensive, decisive order to buy a table.
By Jeremy on 12/12, 2024
Was this review helpful? Yes / No (0/0)
Converting 480VAC 60Hz to 400VAC 50Hz for Motor Loads
Ok, we recommend using Frequency converter model: HZ-50-3375, 75kVA power capacity, input: 3ph, Wye (L1,L2,L3 + N,G), 480V (+/- 10%), 50/60Hz and output: 3ph, Wye/Delta (L1,L2,L3 + N,G), adjustable (0-520V), adjustable (40-120Hz), 104.2A
By GoHz.com on 02/08, 2024
Was this review helpful? Yes / No (0/0)
Converting 480VAC 60Hz to 400VAC 50Hz for Motor Loads
We have 480VAC @ 60Hz supply and want to convert to 400VAC @ 50Hz load .. The load is <50 amps for the total line, there are no heaters it is just smaller motors all on VFD’s where you can control inrush if needed. I do not think any motor is over 3 hp.. What do you recommend?
By Karl on 02/08, 2024
Was this review helpful? Yes / No (0/0)
inquiry
Hellow,

I have AC motor const speed 50 KW, 3 ph 380V, 50 HZ.
While the available I/P power source is 480 V AC, 60 HZ.
Could this inverter supply this motor.
Also, need to confirm the O/P will be Y in order to use one phase and neutral as 220 V supply for lighting load?
Need to confirm the above loads plus if we have zone 2 version of this converter.


Please advise.
By Mohamed on 24/08, 2020
Was this review helpful? Yes / No (0/0)
converter HZ-50-3375
I need detailed datasheet from this converter.  Can you send me him please?
By Pavel on 24/03, 2016
Was this review helpful? Yes / No (0/0)
